Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Certificazione
La CINA Shenzhen Learnew Optoelectronics Technology Co., Ltd. Certificazioni
La CINA Shenzhen Learnew Optoelectronics Technology Co., Ltd. Certificazioni
Rassegne del cliente
25 agosto 2023, ho acquistato i chip UVA LED da Learnew. Learnew ha consegnato i chip UVA personalizzati che abbiamo richiesto rapidamente e con un'eccellente lavorazione.Lui era in grado di dirmi esattamente quale prodotto avrebbe funzionato con la mia stampante di curingSono molto professionisti.

—— Ashraf Trading

Il 13 ottobre 2023, ho ricevuto un chip LED 3535 COB personalizzato. La loro attenzione ai dettagli, le risposte tempestive e la consegna puntuale hanno superato le mie aspettative. Il campione che ho ricevuto è quello di cui ho bisogno,molto luminoso, sceglierò LEARNEW per molto tempo in futuro

—— Hector Bustillo

Marzo 2024,Solo ricevuto il prodotto e l'ho provato,Il design di questi chip LED High è eccezionale.Sono compatti, facili da installare e forniscono un'illuminazione eccellente.Sono estremamente soddisfatto della loro performance.!

—— Fabio Antista

Sono profondamente impressionato dalla funzionalità di questi chip UV LED, che offrono una potenza UV affidabile, un'elevata efficienza e una lunga durata di vita, un grande investimento per qualsiasi applicazione UV.

—— Ali Muhammad

Sono ora online in chat

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments
Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments
Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Grande immagine :  Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Dettagli:
Luogo di origine: Cina
Marca: LEARNEW
Certificazione: CE
Numero di modello: 3538 SERIE
Termini di pagamento e spedizione:
Quantità di ordine minimo: 2000-10000 PCS
Prezzo: negotiable
Imballaggi particolari: Pacchetto antipolvere e antielettrostatico
Tempi di consegna: 1-7 giorni lavorativi per i campioni, 1-4 settimane per la quantità d'ordine
Termini di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione: 500,000PCS al mese

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

descrizione
Nome: CHIP LED COB Potenza: 250w
Se: 2A*5 VF: 24-26V

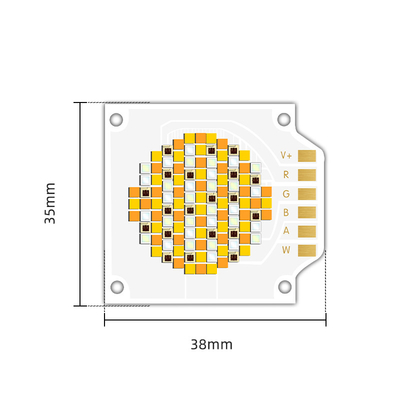

Dimensione intera: 35X38MM Servizio: Prodotto su misura
Evidenziare:

3538 COB LED Chip

,

250W-350W COB LED Chip

,

Five Color COB LED Chip

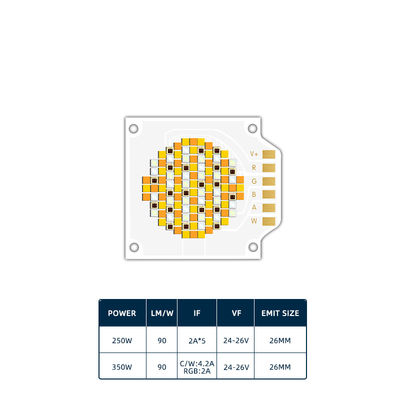

Model POWER CCT LM/W IF VF WHOLE SIZE EMIT SIZE VIEW ANGLE CRI SUBSTRATE
3538 SERIES 250W/350W Five colors COB 620nm/460nm/520nm/2700K /6500K 90 2A*5 24-26V 35X38MM 26MM 120° 95 Boss thermal and electrical separation copper substrate + aluminum nitride structure

COB (Chip on Board) LED is an LED packaging technology that directly connects LED chips to the PCB substrate instead of using traditional LED packaging. The advantages of five-color COB LEDs mainly include:

  • High brightness: COB LEDs integrate multiple LED chips on the same substrate, so they can provide higher brightness output.
  • Uniform light distribution: Since multiple LED chips are on the same substrate, COB LEDs can provide more uniform light distribution and reduce the light spot problem caused by multiple light sources.
  • Compact design: COB LEDs are more compact than traditional LED packages and are suitable for some applications with limited space.
  • Thermal management: COB LEDs integrate multiple LED chips on the PCB substrate, which helps to improve heat dissipation and extend the service life of LED lamps.
  • High color reproduction: Due to the combination of multiple LED chips, COB LEDs can provide a wider range of color temperature and color options with better color reproduction.

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 0Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 1

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 2

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 3



Five color COB Chip FAQ:

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.

Q2:All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us.

Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our
professional team will reply you in one hour here.

Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on WhatsApp or add
learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.

Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the
goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on WhatsApp
or ask our team.

Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on WhatsApp. Or you can contact us for the order details, we will reply you in mins.

Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.

Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery
could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET
plastic containers and bottles in all shapes.
